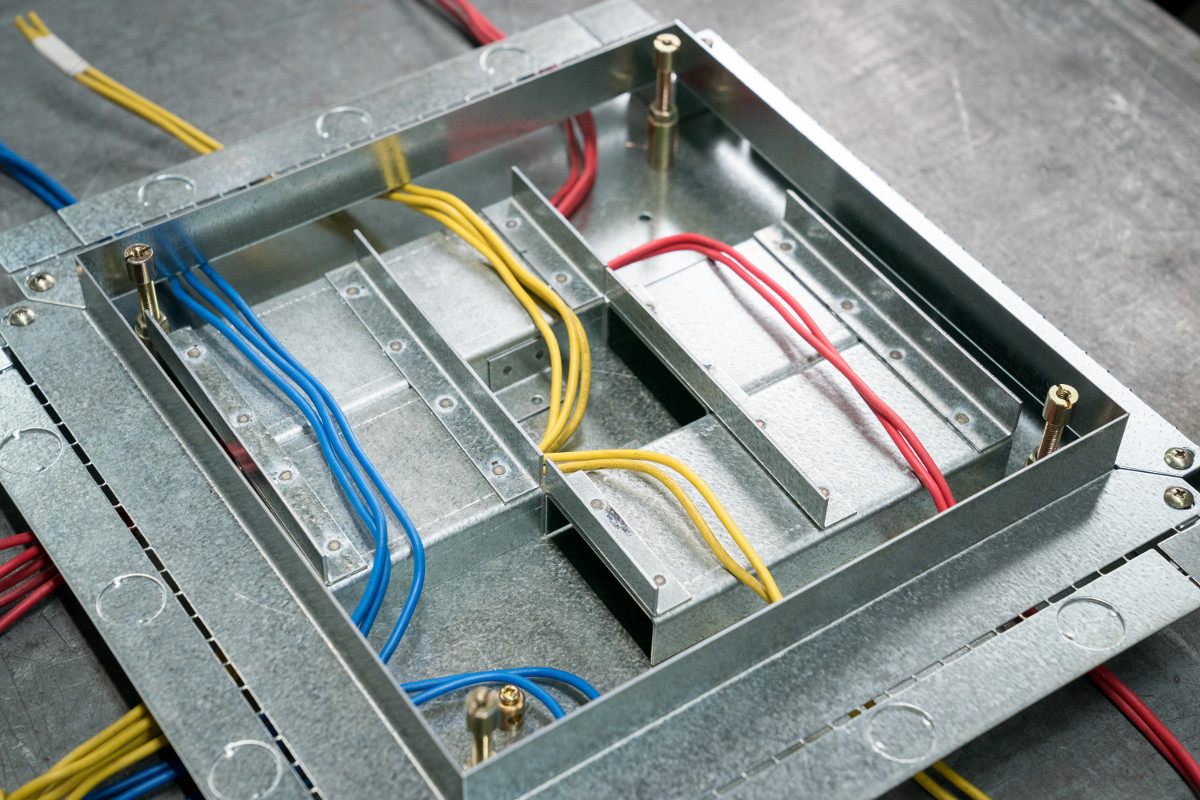

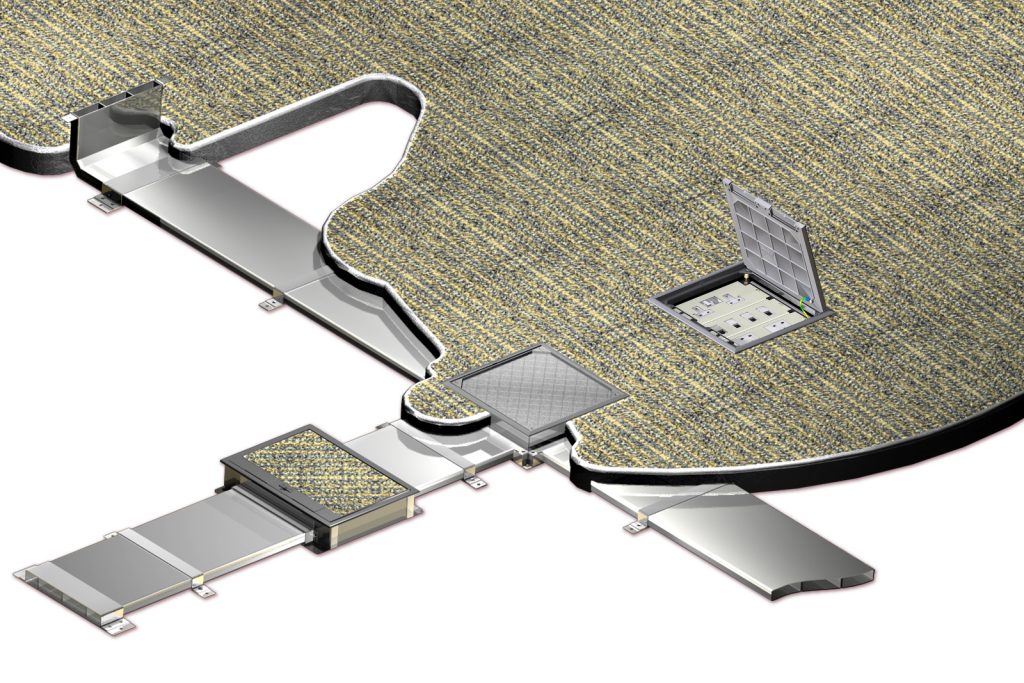

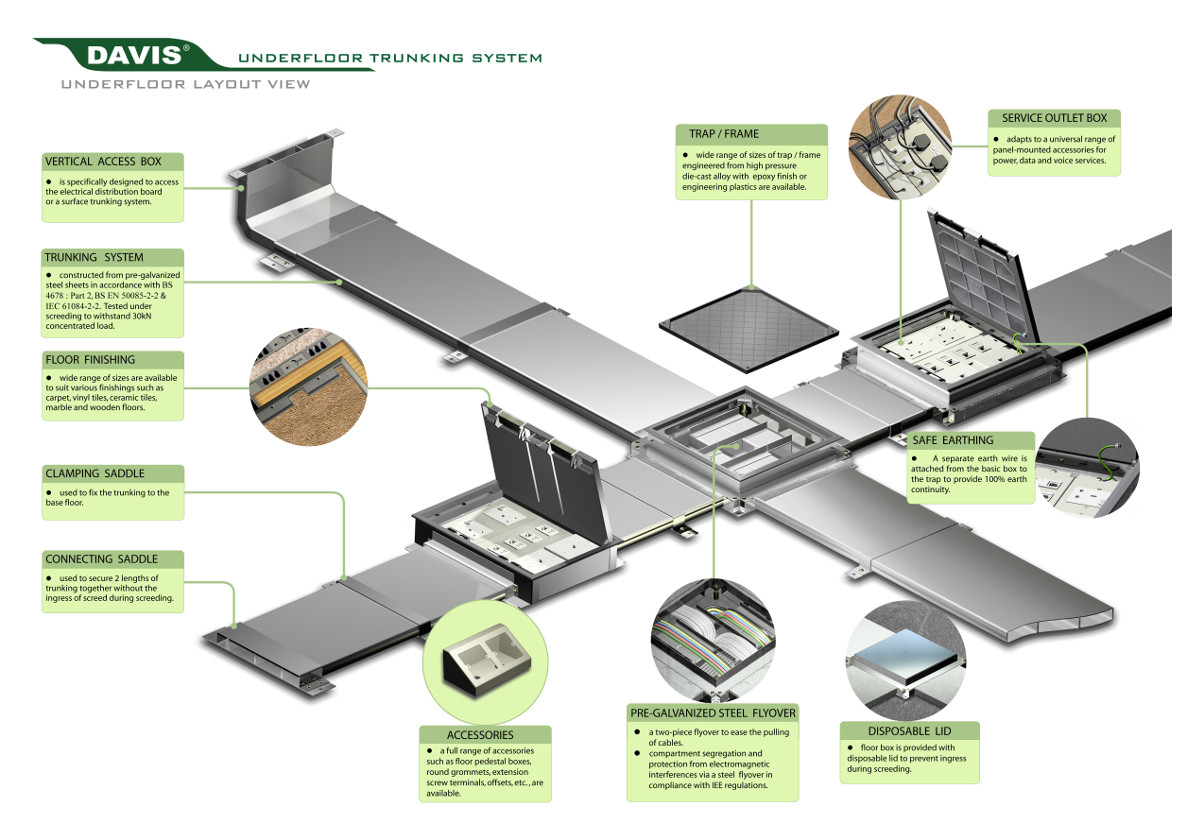

Underfloor Trunking System
Davis
Cable Management System
- Constructed from pre-galvanized steel sheets in accordance with BS 4678 : Part 2, BS EN 50085-2-2 & IEC 61084-2-2, BS EN 10142, BS EN 10327 & JIS G 3302
- Trap & frame tested to withstand 4.5kN concentrated load.
- Underfloor trunking (screeded) tested to withstand 30kN concentrated load.
- The system incorporates numerous design features to ensure a fast and simple installation.
- Designed to support CAT 6 structured cabling systems.
- Suitable for screed depth 56mm and above.
- Floor boxes are IP30 rated in accordance with BS EN 60529.
- Choice of 1, 2, 3 or 4 compartments.
- Wide range of power and data accessories available to meet all requirements.
- Choice of carpet finish & tile finish.
