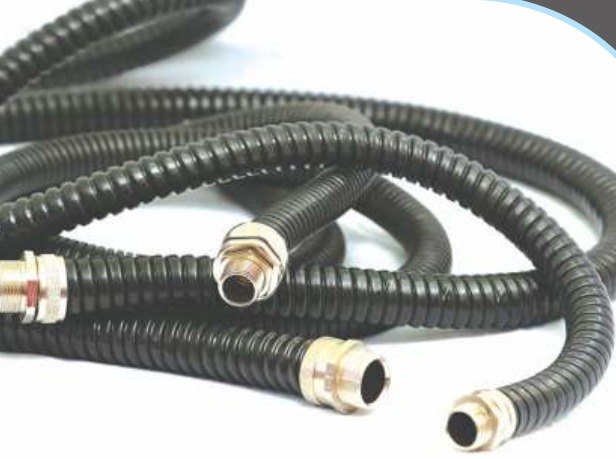

Flexible PVC Coated Galvanized Tubes

Product : PVC Coated Steel Flexible Conduit
Construction : Helically Wound Square lock Flexible Conduit overaheath with PVC.
The Conduit Will be Uniform in diameter through our it&#39;s length.
The internal surface of the conduit will be free from burrs &amp; sharp edges.
Colour : Self
PVC Coating : Black/Grey PVC Also available in LFHSUV resistant

Pulse Ignitors for HS Lamps
50 to 1000 W

Pulse Ignitors for HS Lamps 50 to 1000 W

Standard version
For standard high pressure sodium lamps (HS)
Max. permitted casing temperature: 95 &deg;C
Screw terminals: 0.5&ndash;1.5 mm&sup2;
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I

Pulse Ignitors
for HS and
HI Lamps
up to 1000 W

Pulse Ignitors for HS and HI Lamps up to 1000 W

With automatic switch-off
For high pressure sodium lamps (HS),
metal halide lamps (HI) and
ceramic discharge lamps (C-HI)
Max. permitted casing temperature: 95 &deg;C
Screw terminals: 0.75&ndash;2.5 mm&sup2;
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I
This pulse ignitor is only for use with ballasts that
have a dedicated tapping, as this determines the
size of the ignition voltage.

Electronic
Superimposed
Ignitors
for HS Lamps
600 and 750 W

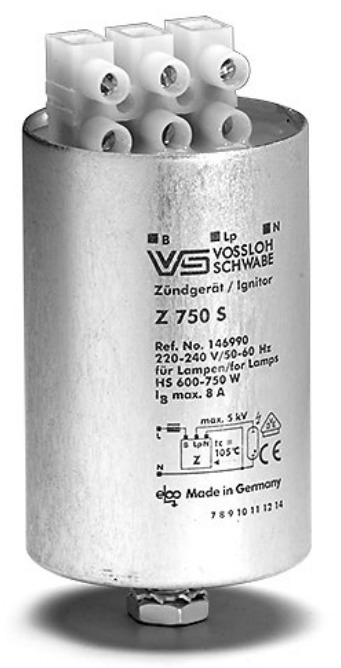

Electronic Superimposed Ignitors for HS Lamps 600 and 750 W

Standard version
For high pressure sodium lamps (HS)
Phasing of the ignition voltage:
60&ndash;90 &deg;el and 240&ndash;270 &deg;el
Max. permitted casing temperature: 105 &deg;C
Screw terminals: 0.75&ndash;4 mm&sup2;
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I and II

Electronic
Superimposed
Ignitors
for HS Lamps
70 (DE) to 400 W
and HI Lamps
35 to 400 W

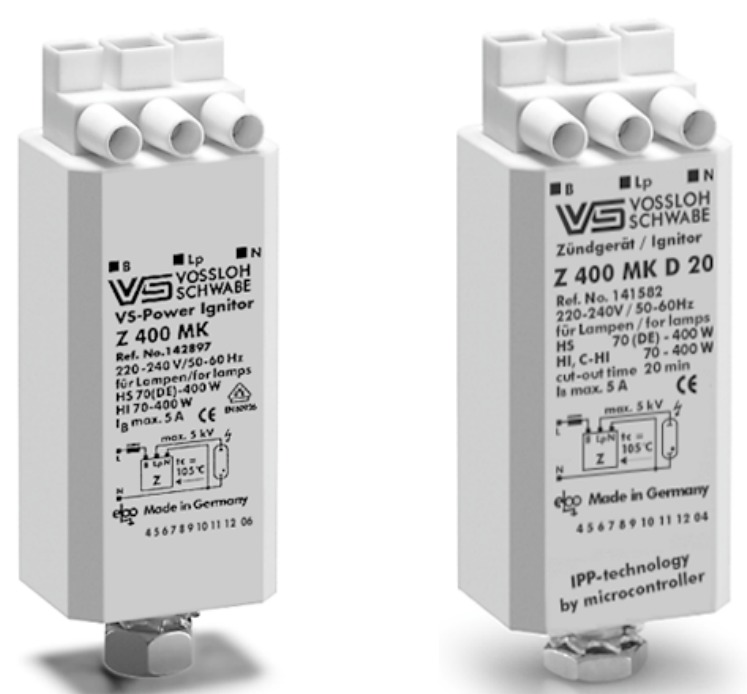

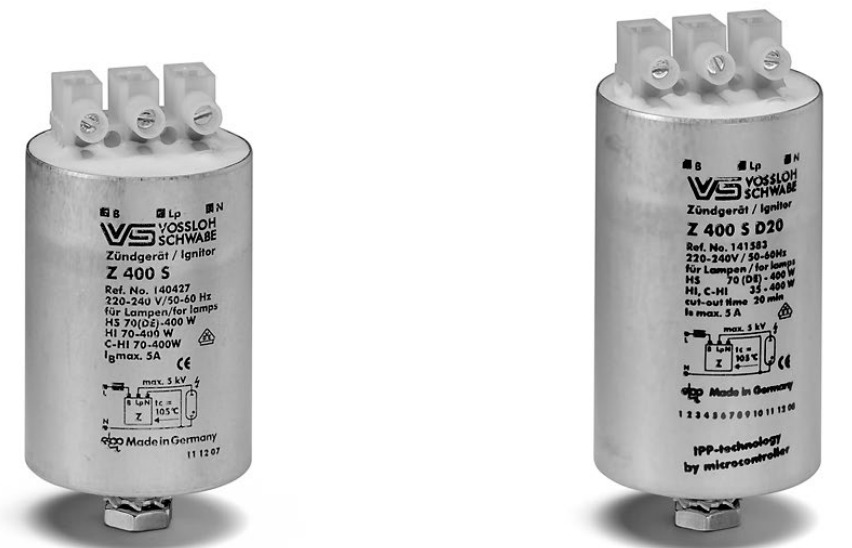

Electronic Superimposed Ignitors for HS Lamps 70 (DE) to 400 W and HI Lamps 35 to 400 W

<ul>
	<li>Standard version or with automatic switch-off</li>
	<li>Compact shape</li>
	<li>For high pressure sodium lamps (HS), metal halide lamps (HI) and ceramic discharge lamps (C-HI)</li>
	<li>Ignition voltage: 4&ndash;5 kV</li>
	<li>Phasing of the ignition voltage:</li>
	<li>60&ndash;90 &deg;el and 240&ndash;270 &deg;el</li>
	<li>Max. permitted casing temperature: 105 &deg;C</li>
	<li>Fastening: male nipple with pre-assembled washer and nut</li>
	<li>For luminaires of protection class I and II</li>
</ul>

<ul>
	<li>Standard version or with automatic switch-off</li>
	<li>For high pressure sodium lamps (HS), metal halide lamps (HI) and ceramic discharge lamps (C-HI)</li>
	<li>Phasing of the ignition voltage:</li>
	<li>60&ndash;90 &deg;el and 240&ndash;270 &deg;el</li>
	<li>Max. permitted casing temperature: 105 &deg;C</li>
	<li>Screw terminals: 0.75&ndash;4 mm&sup2;</li>
	<li>Fastening: male nipple with pre-assembled washer and nut</li>
	<li>For luminaires of protection class I and II</li>
</ul>

Electronic
Superimposed
Ignitors
for HS Lamps
up to 70 W

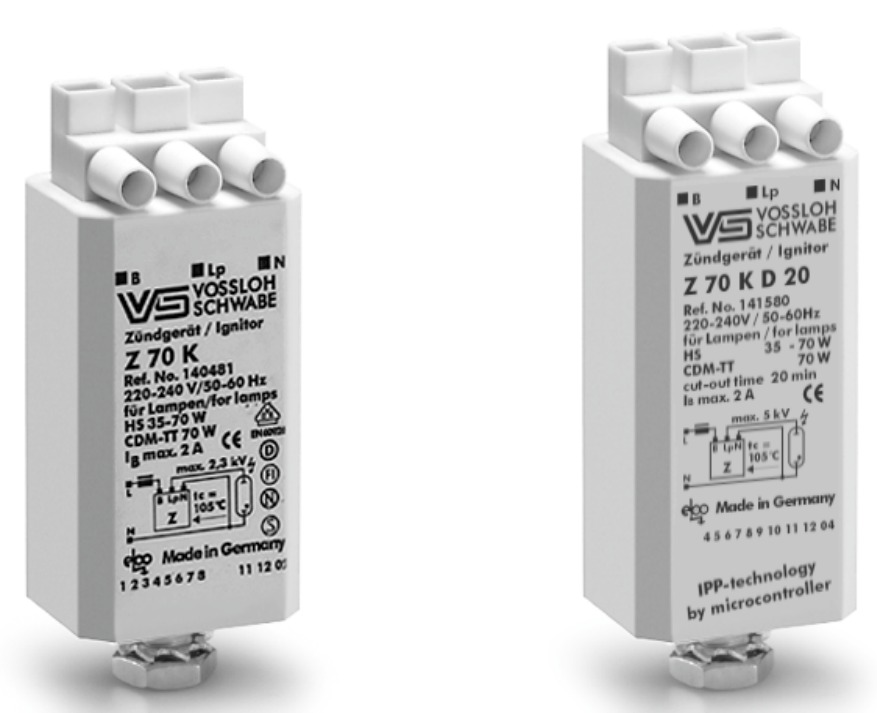

Electronic Superimposed Ignitors for HS Lamps up to 70 W

Standard version or with automatic switch-off
For high pressure sodium lamps (HS) and
ceramic discharge lamps C-HI-TT/ET with base E27
Phasing of the ignition voltage:
60&ndash;90 &deg;el and 240&ndash;270 &deg;el
Max. permitted casing temperature: 105 &deg;C
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I and II

Ballasts for
HS and HI Lamps
250 to 1000 W

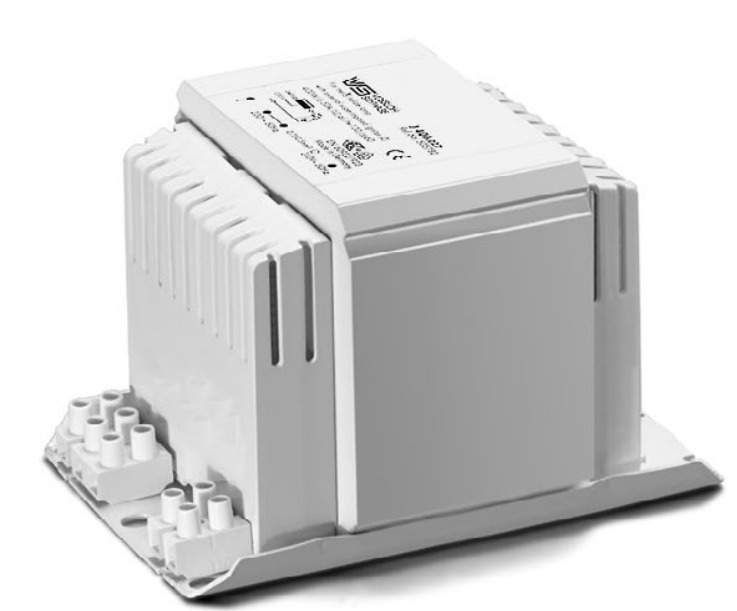

Ballasts for HS and HI Lamps 250 to 1000 W

Shape: 91x104 mm
For high pressure sodium lamps (HS),
metal halide lamps (HI) and
ceramic discharge lamps (C-HI)
Vacuum-impregnated with polyester resin
Screw terminals: 0.75&ndash;2.5 mm&sup2;
Protection class I
tw 130
