Application

These cables are designed for residential and commercial infrastructure. They serve as the connecting medium in power and control panels, cabinets & switchgears. They can also used for the purposes such as stationary and static appliances, motors and for other single phase connections.

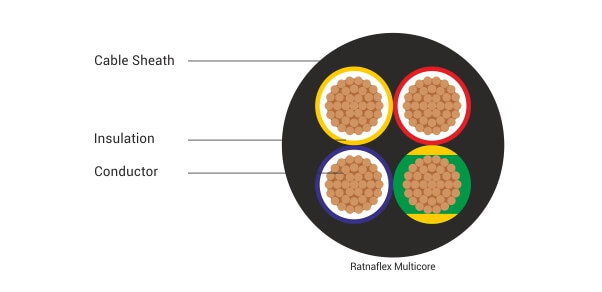

Ratnaflex -M: PVC insulated & sheathed multicore cables suitable for all general purpose wirings for max. operating temperature of 70oC.

Technical Data

Approvals : IS 694 marked, FIA/TAC
Conductor : Electrolytic grade annealed copper Class 5 as per IS 8130
Standard Cable Colour : Black, grey & white
Voltage Rating : Up to and including 1100V
Packing : Standard packing of 100 mtr. in coil. Longer length available on request



Core Construction =>1 to 5 Core

Nominal CrossSectional Area => 0.5 to 300 Sq. mm
