RR Kabel

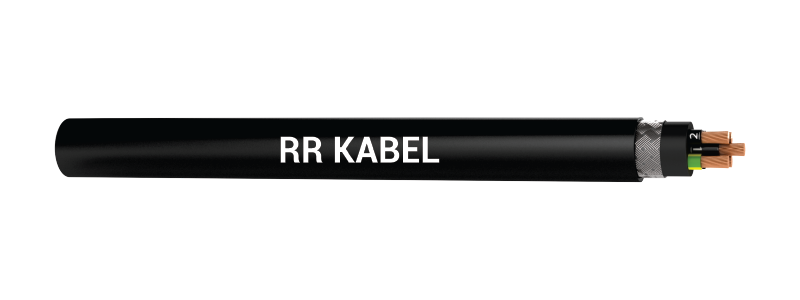

JZ-YCY BK 0.6/1.0 KV

Nominal Voltage:&nbsp;UO / U 0.6 / 1kV

Insulation Resistance:&nbsp;Min. 20 G&Omega; x cm

Temperature Range:&nbsp;Flexing -5&deg;C to +70&deg;C. Fixed installation -30&deg;C to +70&deg;C

Minimum Bending Radius:&nbsp;Flexing 20 x cable &oslash;. Fixed installation 6 x cable &oslash;

Test Voltage:&nbsp;4000V

Breakdown Voltage:&nbsp;Min. 8000V

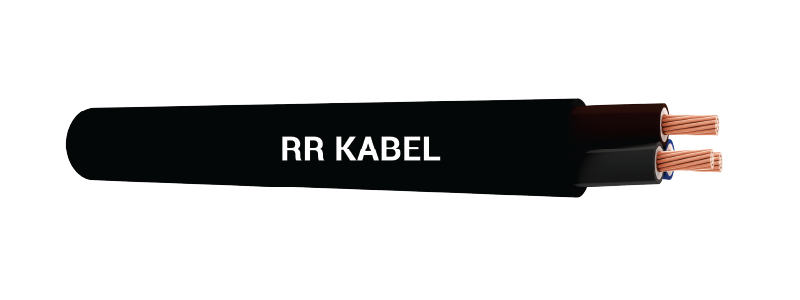

UL 2576, 2598

Standard:&nbsp;UL &ndash; Std. 758; UL &ndash; Style 2576, 2598

Nominal Voltage:&nbsp;300V

Temperature Range:&nbsp;-20&deg;C to + 80&deg;C

Test Voltage:&nbsp;1500V

Minimum Bending Radius:&nbsp;Flexing approx. 15x cable &oslash;

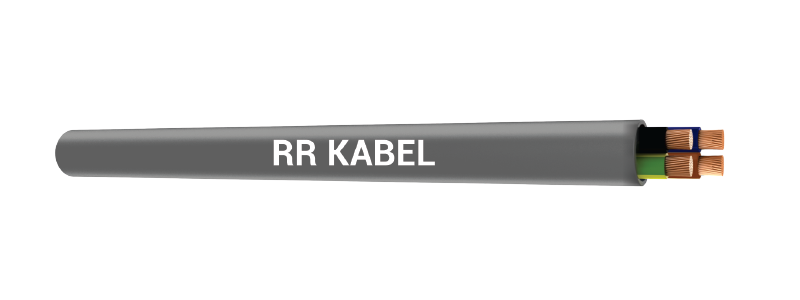

UL 2464

Standard:&nbsp;UL- Std. 758. Special PVC command cable, approved to UL-Style 2464, cores according to AWG 24-16 to UL-Style 1007/1569

Nominal Voltage:&nbsp;300V

Test Voltage:&nbsp;1500V

Break down Voltage:&nbsp;Min. 3000V

Temperature Range:&nbsp;Flexible -10&deg;C to +80&deg;C. Fixed installation -20&deg;C to + 80&deg;C

Minimum Bending Radius:&nbsp;Flexing approx. 15x cable &oslash;

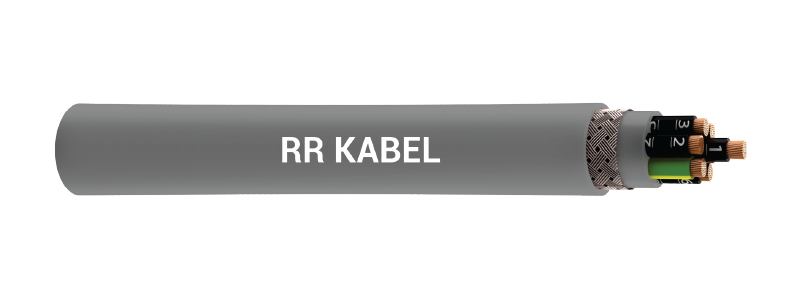

H05Z1Z1-F (318B)

Nominal Voltage:&nbsp;U / U 300/500 V

Temperature Range:&nbsp;Flexing -5&deg;C to +70&deg;C. Fixed Installation : -30&deg;C to +70&deg;C

Minimum Bending Radius:&nbsp;Flexing 7.5 x cable &oslash;; Fixed installation 4 x cable &oslash;

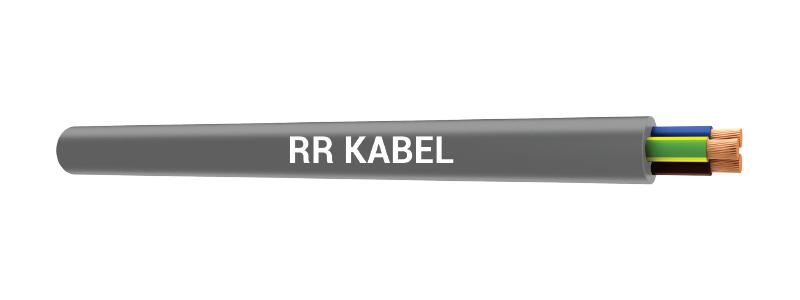

H03/H05V2V2H2-F & H03/H05V2V2-F

Nominal Voltage:&nbsp;300 / 500V (H05V2V2H2-F / H05V2V2-F); 300 / 300V (H03V2V2H2-F / H03V2V2-F)

Insulation Resistance:&nbsp;Min. 20 G&Omega; x cm

Temperature Range:

<ul>
	<li>Flexing -5&deg;C to +90&deg;C</li>
	<li>Fixed Installation -30&deg;C to +90&deg;C</li>
	<li>Fixed Installation 5 x cable &oslash;</li>
</ul>

Minimum Bending Radius:&nbsp;Flexing 7.5 x cable &oslash;; Fixed installation 4 x cable &oslash;

Test Voltage:&nbsp;4000V

Breakdown Voltage:&nbsp;Min. 8000V

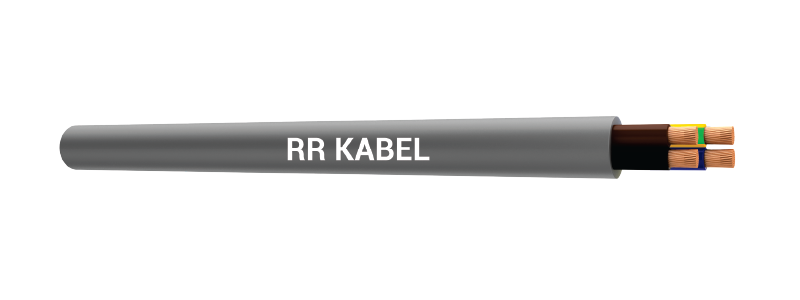

JB-750

Nominal Voltage:&nbsp;Uo/U 450/750V

Insulation Resistance:&nbsp;Min. 20 G&Omega; x cm

Temperature Range:&nbsp;Flexing -5&deg;C to +70&deg;C

Fixed Installation :&nbsp;-30&deg;C to +70&deg;C

Minimum Bending Radius:&nbsp;Flexing 7.5 x cable &oslash;. Fixed Installation 4 x cable &oslash;

Test Voltage:&nbsp;4000V

Breakdown Voltage:&nbsp;Min. 8000V

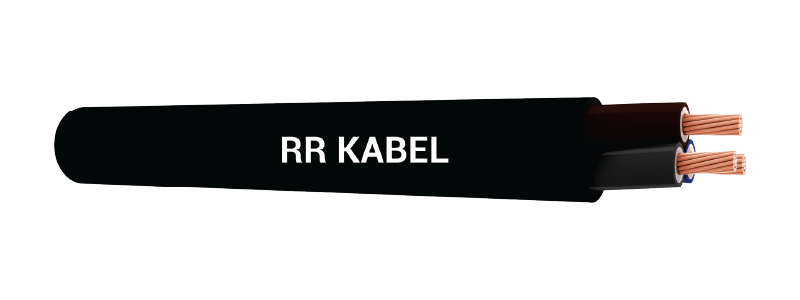

H03/H05VVH2-F & H03/H05VV-F

Nominal Voltage:&nbsp;300/500V (H05VV-F &amp; H05VVH2-F); 300/300V (H03VV-F &amp; H03VVH2-F)

Insulation Resistance:&nbsp;Min. 20 G&Omega; x cm

Temperature Range:&nbsp;Flexing -5&deg;C to +70&deg;C. Fixed Installation : -30&deg;C to +70&deg;C

Minimum Bending Radius:&nbsp;Flexing 7.5 x cable &oslash;; Fixed installation 4 x cable &oslash;

Test Voltage:&nbsp;4000V

Breakdown Voltage:&nbsp;Min. 8000V

JZ-HCH

Nominal Voltage:&nbsp;Uo&nbsp;/ U 300 / 500V

Temperature Range:&nbsp;Flexing -15&deg;C to +70&deg;C. Fixed installation -30&deg;C to +70&deg;C

Minimum Bending Radius:&nbsp;Flexing approx. 15 x cable &oslash;. Fixed installation approx. 6 x cable &oslash;

Test Voltage:&nbsp;4000V
