Application

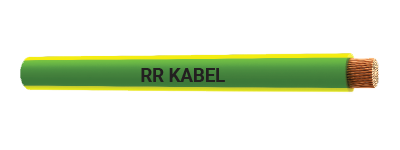

Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as
stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.

Standard

DIN EN 50525-2-31, VDE 0285-525-2-31, BS EN 50525-2-31.

Technical Data

Voltage Rating : H05V-K 0.5 to 1 mm² - 300 / 500V, H07V-K 1.5 to 240 mm² - 450 / 750V

Cable Design Parameters

Green, Black, Red, Blue, Yellow, Green/Yellow, White, Violet, Brown, Orange, Pink, Grey.



Nominal CrossSectional Area => 0.5 to 240 Sq. mm
