Vossloh Schwabe

Pulse Ignitors for HS Lamps
50 to 1000 W

Pulse Ignitors for HS Lamps 50 to 1000 W

Standard version
For standard high pressure sodium lamps (HS)
Max. permitted casing temperature: 95 &deg;C
Screw terminals: 0.5&ndash;1.5 mm&sup2;
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I

Pulse Ignitors
for HS and
HI Lamps
up to 1000 W

Pulse Ignitors for HS and HI Lamps up to 1000 W

With automatic switch-off
For high pressure sodium lamps (HS),
metal halide lamps (HI) and
ceramic discharge lamps (C-HI)
Max. permitted casing temperature: 95 &deg;C
Screw terminals: 0.75&ndash;2.5 mm&sup2;
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I
This pulse ignitor is only for use with ballasts that
have a dedicated tapping, as this determines the
size of the ignition voltage.

Electronic
Superimposed
Ignitors
for HS Lamps
600 and 750 W

Electronic Superimposed Ignitors for HS Lamps 600 and 750 W

Standard version
For high pressure sodium lamps (HS)
Phasing of the ignition voltage:
60&ndash;90 &deg;el and 240&ndash;270 &deg;el
Max. permitted casing temperature: 105 &deg;C
Screw terminals: 0.75&ndash;4 mm&sup2;
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I and II

Electronic
Superimposed
Ignitors
for HS Lamps
70 (DE) to 400 W
and HI Lamps
35 to 400 W

Electronic Superimposed Ignitors for HS Lamps 70 (DE) to 400 W and HI Lamps 35 to 400 W

Standard version or with automatic switch-off
Compact shape
For high pressure sodium lamps (HS),
metal halide lamps (HI) and
ceramic discharge lamps (C-HI)
Ignition voltage: 4&ndash;5 kV
Phasing of the ignition voltage:
60&ndash;90 &deg;el and 240&ndash;270 &deg;el
Max. permitted casing temperature: 105 &deg;C
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I and II

Standard version or with automatic switch-off
For high pressure sodium lamps (HS),
metal halide lamps (HI) and
ceramic discharge lamps (C-HI)
Phasing of the ignition voltage:
60&ndash;90 &deg;el and 240&ndash;270 &deg;el
Max. permitted casing temperature: 105 &deg;C
Screw terminals: 0.75&ndash;4 mm&sup2;
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I and II

Electronic
Superimposed
Ignitors
for HS Lamps
up to 70 W

Electronic Superimposed Ignitors for HS Lamps up to 70 W

Standard version or with automatic switch-off
For high pressure sodium lamps (HS) and
ceramic discharge lamps C-HI-TT/ET with base E27
Phasing of the ignition voltage:
60&ndash;90 &deg;el and 240&ndash;270 &deg;el
Max. permitted casing temperature: 105 &deg;C
Fastening: male nipple with pre-assembled
washer and nut
For luminaires of protection class I and II

Ballasts for
HS and HI Lamps
250 to 1000 W

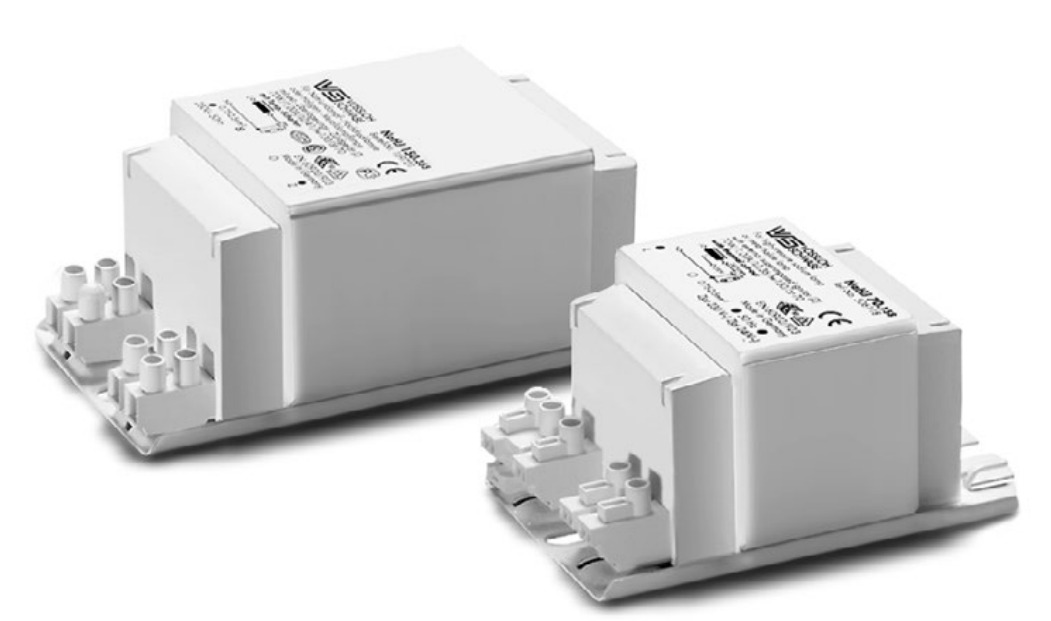

Ballasts for HS and HI Lamps 250 to 1000 W

Shape: 91x104 mm
For high pressure sodium lamps (HS),
metal halide lamps (HI) and
ceramic discharge lamps (C-HI)
Vacuum-impregnated with polyester resin
Screw terminals: 0.75&ndash;2.5 mm&sup2;
Protection class I
tw 130

Ballasts with
Thermal Cut-out
for HS and
HI Lamps
35 to 250 W

Ballasts with Thermal Cut-out for HS and HI Lamps 35 to 250 W

Shape: 53x69 mm
For high pressure sodium lamps (HS),
metal halide lamps (HI) and
ceramic discharge lamps (C-HI)
Vacuum-impregnated with polyester resin
With temperature switch with automatic reset
Protection class I
tw 130
